Qube Solar
QUBE solar harnesses two 550 W mono-crystal bifacial solar panels (totaling 1100 W) and a battery pack equivalent to 10.8 kVAh. This tower runs 400 W of LED lights for over 10 hours on a day of solar charge for long-term lighting. It has precise tilt and orientation for optimal sun exposure, efficiency-boosting bifacial panels that capture reflected light, and the flexibility of dimmable LEDs to tailor runtimes according to your specific lighting needs.
Mast height
23 ft (7 m)
Light
4 x 100 W LED
Runtime
Min: 10 hours Max: 15 hours
Light coverage
2000 sq. m
Features
Ideal for small work or remote lighting- Easy-to-deploy solar panels enable precise tilt and orientation to direction for optimal sun exposure
- Bifacial panels improve efficiency by taking in reflected light
- Dimmable LEDs allow adjustable runtimes based on lighting needs
- Quite and environment-friendly
| Engine | Generator | TANK SIZE | SOCKETS | WEIGHT | DIMENSIONS (L×B×H) |
|---|---|---|---|---|---|
| 2 x 550 W mono bifacial solar panels (1100 W) |
NA | (Battery pack) (10.8 kVAh) |
Input : 16 A, 3-pin male for charging | 950 kg | Travel: 2.8 x 1.28 x 2.2 m Operation: 2.8 x 2.74 x 7 m |
Lights:
- Unique LEDs with adjustable color temperature and light sensor (where available)
- LEDs are dimmable to allow for longer runtimes
- Custom-built fixtures can withstand the vibration and temperature of the work environments
Mast:
- Hot-dip galvanized mast ensures superior protection against rusting and abrasions
- Unique worm winch reduces the load on the winch handle to raise and lower the mast
- Light arm can be tilted manually to 3 different angles
- All pulleys are plated and fitted with sealed bearings to impart long life
- All pulleys are plated and fitted with sealed bearings to give a long life
- All wire ropes are stainless steel
Mobility:
- Single wide axle with 2 nos. of 13" pneumatic tires with leaf spring suspension
- Light tower can be easily towed using a NATO eye or a 2" ball hitch coupler
- Central lifting hook on the mast allows for each lifting of the machine using a crane
- Tie-down slots at 4 corners allow for the securing of the machine during transport
- Folding-type drawbar allows for a compact transport footprint
Stability:
- There are 4 stabilizer jacks on outriggers and an additional stabilizer jack on the drawbar
- This offers superior stability to the machine in wind speeds up to 100 kph
- The sidewind jacks make it easy to level the machine during setup
Power In/Out:
- A power input socket to charge batteries as needed
- Circuit breakers safeguard power in and out of the sockets

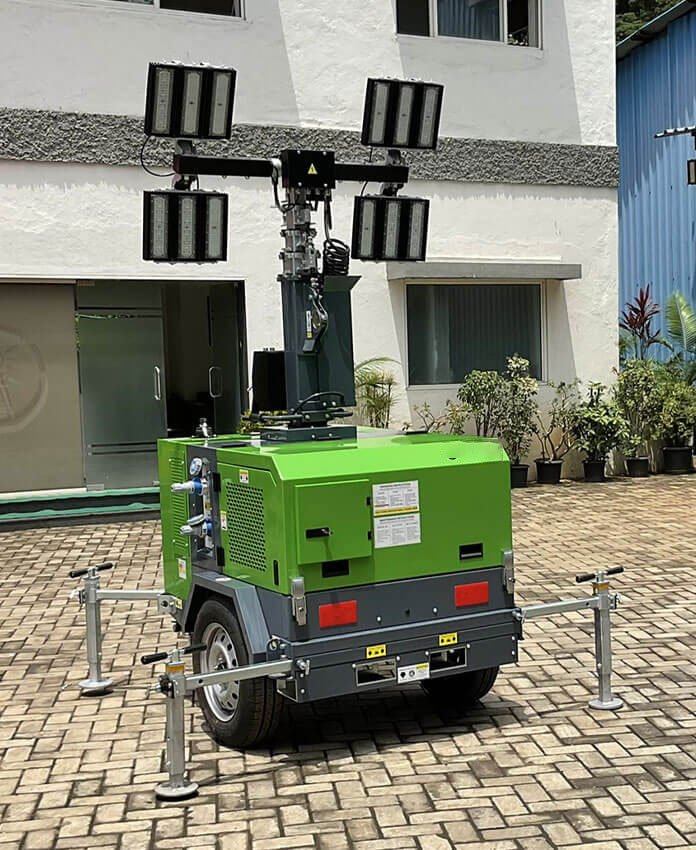

Qube Power Max Hybrid
QUBE power Max Hybrid is designed for superior performance. It is equipped with a battery pack of 7.2 kVAh and a 60-liter diesel capacity. With an ample battery pack and a runtime of 2 to 3 hours, it ensures a reliable and continuous power supply. Weighing 1020 kg, this tower stands out as a powerhouse of energy. It emerges as a dependable power source for mining and oil operations along with infrastructure projects like dams, bridges, large highways, and city works.
Mast height
23 ft (7 m)
Light
6 x 200 W LED
Runtime
100 hours
Light coverage
4000 sq. m
Features
- More power and more lighting with low fuel efficiency and low emissions
- Battery pack of 7.2 kVAh with a runtime of 2 to 3 hours
- 3 operation modes give users an option to draw complete power developed by the generating unit for auxiliary power
- Compact footprint makes it easy to transport
| Engine | Generator | TANK SIZE | SOCKETS | WEIGHT | DIMENSIONS (L×B×H) |
|---|---|---|---|---|---|
| Mitsubishi L2E (3000 rpm) / Mitsubishi L3E (3000 rpm) | NSM / Linz (6 kW @ 50 Hz) (10 kW @ 50 Hz) |
4 × 150 Ah AGM batteries (7.2 kVAh) 60 liters (diesel) |
Output: 16 A, 3-pin female Input: 16 A, 3-pin male |
1020 kg or 1150 kg | Travel: 2.5 × 1.2 × 2.3 m Operation: 2.5 × 2.2 × 7 m |
| Mitsubishi L3E (1500 rpm) | NSM / Linz (6 kW @ 50 Hz) | 48 V × 200 Ah batteries 100 liters (diesel) |
Output: 16 A Input: 32 A |
1030 kg | Travel: 2.5 × 1.2 × 2.3 m Operation: 2.5 × 2.2 × 7 m |
Lights:
- Unique modular LED fixture with specialized lenses for even light distribution
- Custom-built fixtures engineered to endure vibrations and temperature variations in work environments
Mast:
- Hot-dip galvanized mast ensures superior protection against rusting and abrasions
- Unique worm winch reduces the load on the winch handle to raise and lower the mast
- Light arm can be tilted manually to 3 different angles
- All pulleys are plated and fitted with sealed bearings to give a long life
- All wire ropes are stainless steel
Mobility:
- Single axle with 2 nos. of 13" pneumatic tires with leaf spring suspension
- Light tower can be easily towed using a NATO eye or a 2" ball hitch coupler
- Central lifting hook on the mast allows for each lifting of the machine using a crane. Forklift pockets on 3 sides for using forklift trucks
- Tie-down slots at 4 corners allows securing of the machine during transport
- Folding-type drawbar allows for a compact transport footprint
Stability:
- There are 4 stabilizer jacks on outriggers and an additional stabilizer jack on the drawbar
- This offers superior stability to the machine in wind speeds up to 100 kph
- The sidewind jacks make it easy to level the machine during setup
Power In/Out:
- Power output only available in engine mode through one IP65-rated female socket
- Changeover switch for power supply selection between the genset and the grid
- Circuit breakers protect power flow to and from the sockets
- A power input socket to charge batteries as needed
