Qube Power Mini
The QUBE power Mini is a compact and versatile light tower featuring an air-cooled 1-cylinder Honda engine running at 3000 rpm and powered by a 4-liter petrol tank. Its portability and adaptability make it ideal for emergencies and small-scale work; it easily mounts on the bed of trucks or tractors, providing essential illumination in various scenarios.
Mast height
10 ft (3 m)
Light
4 x 100 W LED
Runtime
10 hours
Light coverage
350 sq. m
Features
Ideal for emergency lighting or small and more focused lighting requirements- Easy to handle and can be pushed by an individual
- Easy to transport inside passenger vehicles like jeeps and small vans
- Can be used as a small genset
| Engine | Power Supply | Tank Size | Sockets | Weight | Dimensions (LXBXH) |
|---|---|---|---|---|---|
| Honda GX-80 (3000 rpm) | NSM (750 W @ 50 Hz) | 4.5 liters (Petrol) | Output : 16 A, 3-pin female Input : 16 A, 3-pin male | 80 kg | Travel: 0.6 x 0.6 x 1.2 m Operation: 0.7 x 0.6 x 3 m |
Lights:
- Unique 100 W LED modules with special lenses to optimize light distribution
- Each module is adjustable individually for better light orientation
- IP65-rated LEDs can work in any weather
Mast:
- Lightweight plated mast
- Brake ratchet winch raises the tower in < 30 sec
- Self-lubricating inserts provide a smooth and low-friction movement of tower segments
- Tower retracts to a compact size, thereby allowing for easy transport
Mobility:
- 2 solid rubber wheels mounted to the frame
- Lightweight machine allows easy movement by a single person using the retractable handle
- Machine can also be lifted by 2 people using the two provided handles
- Compact size of the machine ensures it can be transported in pickup trucks and vans
Stability:
- Outriggers can be extended to provide support for the light tower
- The machine is good for wind speeds up to 50 kph
Power In/Out:
- Power output of 300 W is available through a 3-pin industrial female socket that is IP65 rated
- Power can be supplied to run the equipment through a 3-pin industrial male socket
- Changeover switch allows switching of power supply between the genset and grid supply

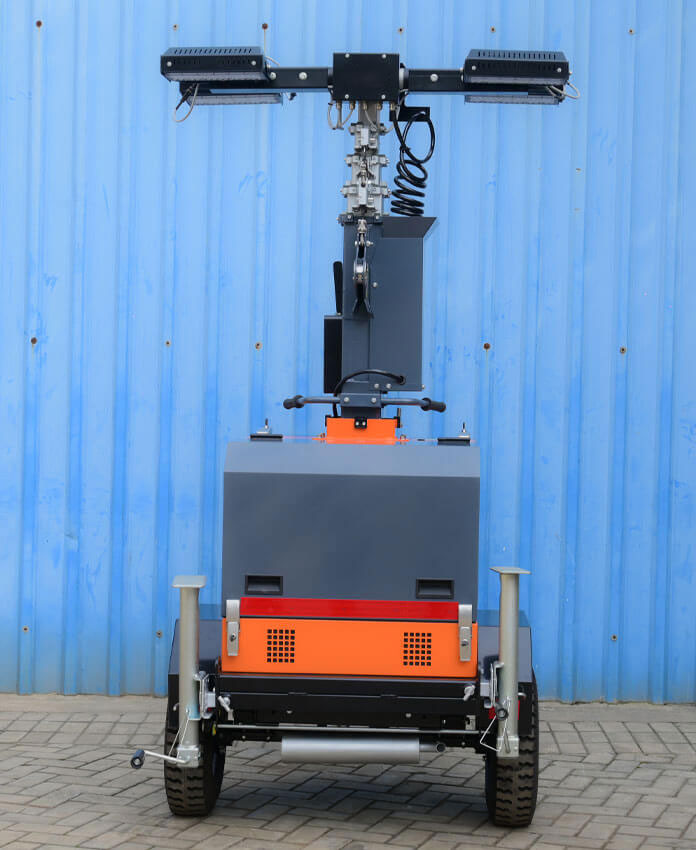

Qube Power
QUBE power is a light tower with a 3 kVA diesel power source and an efficient air-cooled engine. Standing tall at 8 meters, it is built for reliability, delivering exceptional lighting performance with a choice of 4 nos. of 200 W or 300 W LED lights. Whether you need grid A/C input or A/C output sockets, this product caters to temporary power requirements. Weighing in at 550 kilograms, it’s a sturdy, lightweight, and dependable solution for all your lighting and power needs.
Mast height
26 ft (8 m)
Light
4 x 200 W LED
Runtime
65 hours
Light coverage
4000 sq. m
Features
- Ideal for medium-sized work
- Easy to be towed by small vehicles or moved by 2 people
- Compact in size
- Fuel efficient. Requires refueling only 1x per week
- Air-cooled engine enables easy maintenanc
| Engine | Power Supply | Tank Size | Sockets | Weight | Dimensions (LXBXH) |
|---|---|---|---|---|---|
| Kohler KD-441 (3000 rpm) | NSM (3.5 kW @ 50 Hz) | 50 liters (Diesel) | Output : 16 A, 3-pin female | 550 kg | Travel: 2 x 1.1 x 2.3 m Operation: 2 x 2.2 x 8 m |
Lights:
- Modular LED fixture with special lenses for even light distribution
- Rugged fixtures that can withstand the rigors of site conditions
- Custom-built fixture can withstand the vibration and temperature of work environments
Mast:
- Hot-dip galvanized mast ensures superior protection against rusting and abrasions
- Unique worm winch reduces the load on the winch handle to raise and lower the mast height
- Light arm can be tilted manually to 3 different angles
- All pulleys are plated and fitted with sealed bearings to give a long life
- All wire ropes are stainless steel
- Mast can be rotated 355 degrees from the base
Mobility:
- Single axle with 2 nos of pneumatic tires with leaf spring suspension
- Lightweight machine (< 600 kg) easily towed by a light motor vehicle with a NATO eye or a 2" ball hitch coupler
- Tie-down hooks for secure machine transport
- Folding drawbar (if available) for compact transport
- Central mast hook for crane lifting
Stability:
- There are 3 stabilizer jacks on outriggers
- This offers stability to the machine at wind speeds up to 80 kph
- The sidewind jacks make it easy to level the machine
Power In/Out:
- Power output of up to 2 kW is available through a 3-pin female socket that is IP65-rated
- Optionally, a power input socket can be provided to run the equipment
- Changeover switch allows for switching of the power supply between the genset and the grid supply
- Circuit breakers are provided to protect the power into and from the sockets

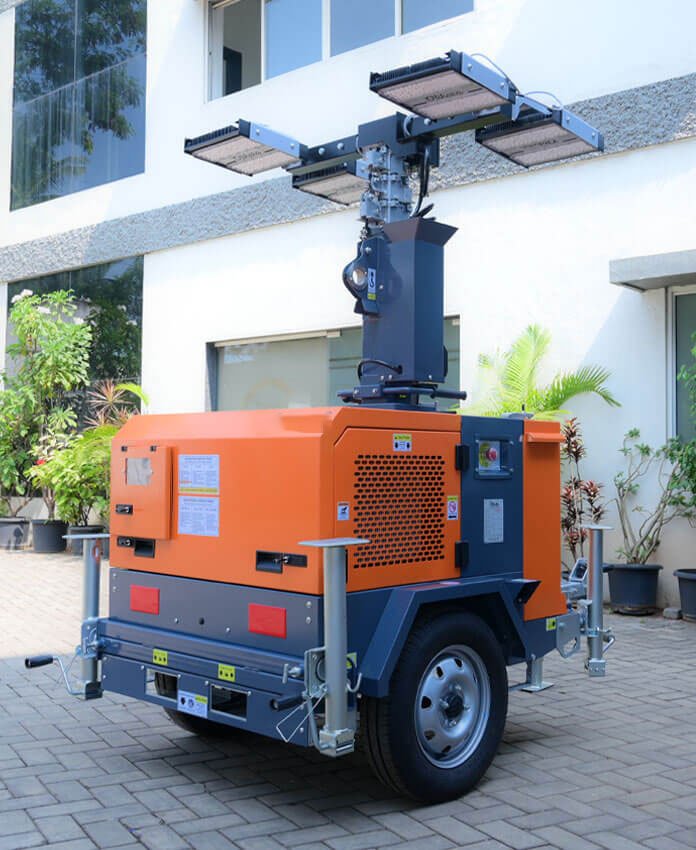

Qube Power MAX
QUBE power Max is meticulously designed to thrive in a spectrum of demanding applications. Featuring a robust water-cooled engine, a large diesel tank, and a weight of less than 1000 kilograms, this equipment stands as a testament to durability and reliability. It finds its niche in the fields of mining and oil, as well as large-scale infrastructure projects such as dams, bridges, and extensive highways. Furthermore, it is well-suited for the exacting requirements of military and defense applications. Its power and adaptability position it as an indispensable asset for a broad range of industries and projects.
Mast height
26 ft (8 m)
Light
4 x 350 W LED
Runtime
100 hours
Light coverage
7500 sq. m
Features
- Ideal for large-sized work
- Easy to be towed by small vehicles
- Longer run time allows for a longer duration between refueling
- Radiator cooling enables usage in extreme temperatures
| Engine | Power Supply | Tank Size | Sockets | Weight | Dimensions (LXBXH) |
|---|---|---|---|---|---|
| Mitsubishi L2E (1500 rpm) / (1800 rpm) / (3000 rpm) | NSM / Linz (3.5 kW @ 50 Hz) (4 kW @ 60 Hz) (6 kW @ 50 Hz) | 100 liters (Diesel) | Output : 16 A, 3-pin female Input : 16 A, 3-pin male |
750 kg | Travel: 2 x 1.1 x 2.3 m Operation: 2 x 2.2 x 8 m |
| Mitsubishi L3E (1500 rpm) / (1800 rpm) / (3000 rpm) | NSM / Linz (5.5 kW @ 50 Hz) (6.5 kW @ 60 Hz) (10 kW @ 50 Hz) | 170 liters (Diesel) | Output : 12 x 16 A sockets Input : 1 x 16 A 3-pin |
890 kg | Travel: 2 x 1.8 x 2.3 m Operation: 2 x 2.4 x 8 m |
Lights:
- Unique modular LED fixture with special lenses for even light distribution
- Rugged fixtures that can withstand the rigors of site conditions
- Custom-built fixture can withstand the vibration and temperature of work environments
Mast:
- Hot-dip galvanized mast ensures superior protection against rusting and abrasions
- Unique worm winch reduces the load on the winch handle to raise and lower the mast height
- Light arm can be tilted manually to 3 different angles
- All pulleys are plated and fitted with sealed bearings to give a long life
- All wire ropes are stainless steel
- Mast can be rotated 355 degrees from the base
Mobility:
- Single axle with 2 nos of pneumatic tires with leaf spring suspension
- Lightweight machine (< 600 kg) easily towed by a light motor vehicle with a NATO eye or a 2" ball hitch coupler
- Tie-down hooks for secure machine transport
- Folding drawbar (if available) for compact transport
- Central mast hook for crane lifting
Stability:
- There are 3 stabilizer jacks on outriggers
- This offers stability to the machine at wind speeds up to 80 kph
- The sidewind jacks make it easy to level the machine
Power In/Out:
- Power output of up to 2 kW is available through a 3-pin female socket that is IP65-rated
- Optionally, a power input socket can be provided to run the equipment
- Changeover switch allows for switching of the power supply between the genset and the grid supply
- Circuit breakers are provided to protect the power into and from the sockets
Bold Poles for Bright Futures
lighting poles play a vital role in modern infrastructure, offering enhanced visibility, safety, and aesthetics across highways, industrial zones, ports, and urban landscapes with delivering reliable and efficient illumination support.
