Qube Grid Base / Trailer
The QUBE grid base / trailer is equipped with a dependable source of grid supply at single-phase 230 V or 120 V at 50 Hz or 60 Hz. These are suitable for diverse applications such as event lighting, mine haul road lighting, and steel plant interior lighting. Designed for flexibility and mobility, we offer both skid and mobile versions, making setup and relocation a breeze. Furthermore, they are versatile enough to accommodate additional equipment like surveillance and networking devices, making them the perfect choice for a wide range of industrial and event-based power requirements.
Mast height
27 ft (8 m)
Light
4 x 400 W LED
Runtime
No noise. No emissions.
Light coverage
6000 sq. m
Features
Ideal for events in locations with less power availability- Both skid and mobile versions are easy to move and set up quickly
- Daisy linking up to 4 towers from a single power source
- Mounting flexibility for devices for surveillance, networking, etc
| ENGINE | GENERATOR | TANK SIZE | SOCKETS | WEIGHT | DIMENSIONS (L×B×H) |
|---|---|---|---|---|---|
| NA | Grid supply 120 VAC @ 60 Hz 230 VAC @ 50 Hz | NA | Output : 32 A, 3-pin female Input : 32 A, 3-pin male |
380 kg or 430 kg (base/trailer) | Travel: 0.8 x 0.8 x 2.3 m Operation: 1.5 x 1.5 x 9 m |
Lights:
- Our unique modular LED fixture with specialized lenses ensures even light distribution
- Custom-built for durability in demanding work environments, handling vibration and temperature variations
Mast:
- Hot-dip galvanized mast ensures superior protection against rusting and abrasions
- Unique worm winch reduces the load on the winch handle to raise and lower the mast
- Light arm can be tilted manually to 3 different angles
- Light arm can be tilted manually to 3 different angles
- All pulleys are plated and fitted with sealed bearings to give a long life
- All wire ropes are stainless steel
- Mast can be rotated 355 degrees from the base
Mobility:
- Trailer version has a single axle with two 10” pneumatic tires and leaf spring suspension
- Trailer version can be easily towed with a NATO eye or 2" ball hitch coupler
- Both base/trailer versions feature a central mast lifting hook for crane use
- Front and rear forklift pockets for easy forklift truck handling
- Four tie-down slots at each corner for secure transport
- Folding drawbar design for a compact transport footprint
Stability:
- There are 3 stabilizer jacks on outriggers and 4 jacks for the base version
- This offers stability to the machine at wind speeds up to 80 kph
- The sidewind jacks make it easy to level the machine
Power In/Out:
- IP65-rated 3-pin female socket, suitable for daisy-chaining additional grid towers
- Equipment operation via the provided power input socket
- Circuit breakers safeguard power flow in and out of the sockets
1. Material Composition
- Fiberglass Reinforced Plastic (FRP)
- Optional resins: Isophthalic, Vinyl Ester, Epoxy
2. Types Available
- FRP Ladder Type Cable Tray
- FRP Perforated Type Cable Tray
- FRP Solid Bottom Cable Tray
3. Color Options
- Standard: Grey, Green, Yellow
- Custom colors available on request
4. Dimensions
| Width (mm) | Height (mm) | Thickness (mm) | Length (mm) |
|---|---|---|---|
| 100–900 | 50–150 | 3 / 4 / 5 / 6 | 3000 |
Custom sizes and shapes available on request.
5. Coating & Properties
- Fire-retardant
- UV stabilized
- Electrically non-conductive
- Corrosion-resistant (acid, alkali, moisture)
6. Support System
- Available with wall, floor, and ceiling mounting brackets
- Compatible with all electrical cable tray accessories
| Width (mm) |
Height (mm) |
Thickness (mm) |
Length (mm) |
|---|---|---|---|
| 50 | 25/35/50 | 1.2/1.5/1.6/2 | 2500/3000 |
| 100 | 25/35/50/75/100 | 1.5/1.6/2/2.5/3 | |
| 150 | |||
| 200 | |||
| 250 | |||
| 300 | |||
| 350 | |||
| 400 | |||
| 450 | |||
| 500 | |||
| 550 | |||
| 600 |

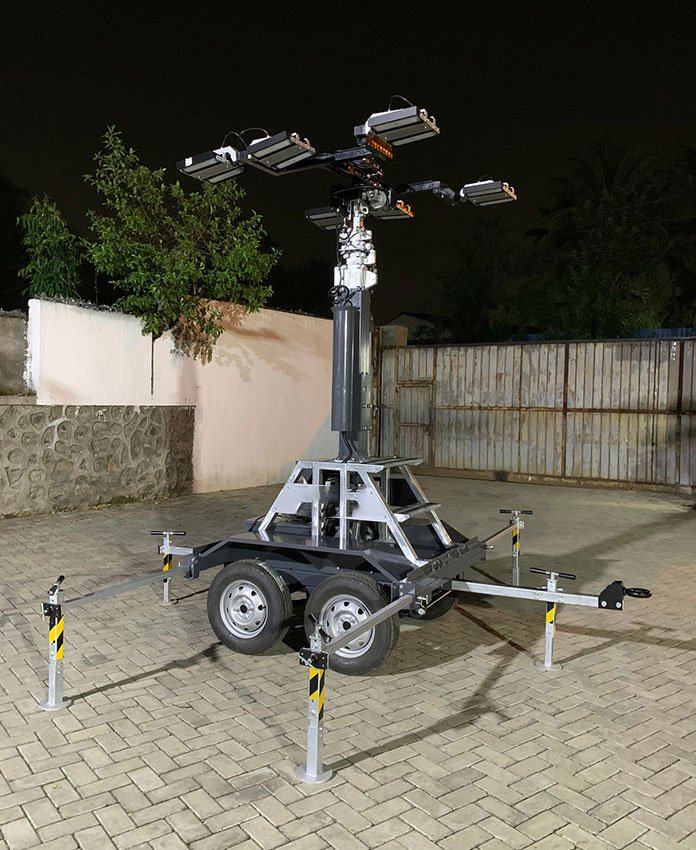

Qube Grid Max
The QUBE grid Max is a large light tower that operates on an outside grid supply. It’s ideal for illuminating vast spaces, making it well-suited for mine lighting, stadium lighting, and oil field exploration. The dual axles ensure superior stability in challenging terrains, while the hydraulic mast quickly extends the tower to its full 11 or 12-meter height. The tower’s adaptability allows for the installation of additional devices like surveillance and networking equipment, making it a versatile solution for your industrial needs.
Mast height
36 ft (11 m)
Light
6 x 400 W LED
Runtime
No noise. No emissions.
Light coverage
8000 sq. m
Features
- Ideal for mining and large-area lighting
- Dual axles offer superior stability in rough terrain
- Hydraulic mast enables the quick raising of the tower up to the full 11-meter height
- Flexible to mount on devices for surveillance, networking, etc
| Engine | Power Supply | Tank Size | Sockets | Weight | Dimensions (LXBXH) |
|---|---|---|---|---|---|
| NA | Grid supply 120 VAC @ 60 Hz 230 VAC @ 50 Hz | NA | Output : 32 A, 3-pin female Input : 32 A, 3-pin male | 850 kg | Travel: 3 x 1.8 x 2.8 m Operation: 4 x 3.8 x 11 m |
Lights:
- Modular LED fixture with special lenses for even light distribution
- Custom fixture built to endure work environment challenges
Mast:
- Hot-dip galvanized mast ensures superior protection against rusting and abrasions
- Hydraulic mast raises the tower in < 1 min. The light arm can be tilted manually to 3 different angles
- All pulleys are plated and fitted with sealed bearings to give a long life.
- All wire ropes are stainless steel
- Mast can be rotated 355 degrees from the base
Mobility:
- Dual axle with 4 nos of 13" pneumatic tires and leaf spring suspension
- Easy towing via a NATO eye or a 2" ball hitch coupler
- Central mast hook for crane lifting
- Front and rear forklift pockets for forklift truck use. Secure with four corner tie-down slots
Stability:
- Five stabilizer jacks on outriggers and one on the drawbar for superior stability in winds up to 120 kph
- The sidewind jacks make it easy to level the machine
Power In/Out:
- IP65-rated 3-pin female socket, ideal for daisy-chaining grid towers
- Equipment operation via the provided power input socket
- Circuit breakers safeguard power flow in and out of the sockets
